Eleaf iStick Pico Mega 80W TC Full Kit

About Eleaf iStick Pico Mega 80W TC Full Kit

Eleaf is one of the most recent e-ciggereate company offering quality products along with state of the art customer support. The company has regular customers who prefer its products. Some of the products that we offer include eleaf mini iJust battery, rebuildable atomizer, elaf iJust mod, iSmoka iGo Mod and several other products. You can visit our online shop and buy ismoka electronic cigerrate to get the best e-smoking experience.

The iStick family by Eleaf comprises of iStick Pico, iStick Basic, iStick OC, iStickPower and iStick Pico 25. All these devices are compact in size and comfortable to hold as well. Along with that, the buttons are easy to use. You can opt for leather and silicon cases. The iStick is a successful series with the well known VV/VW/TC MODs. You can make a selection according to your taste requirements. For the best vaping life, iStick is a superb alternative.

80W Eleaf iStick Pico Mega TC Kit W/O Battery

Product introduction

Parameters

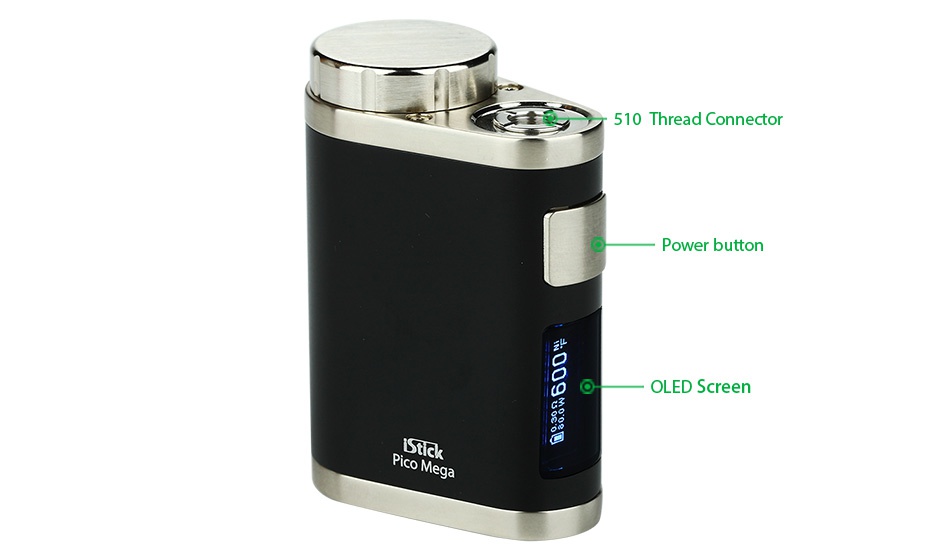

Pico Mega Mod

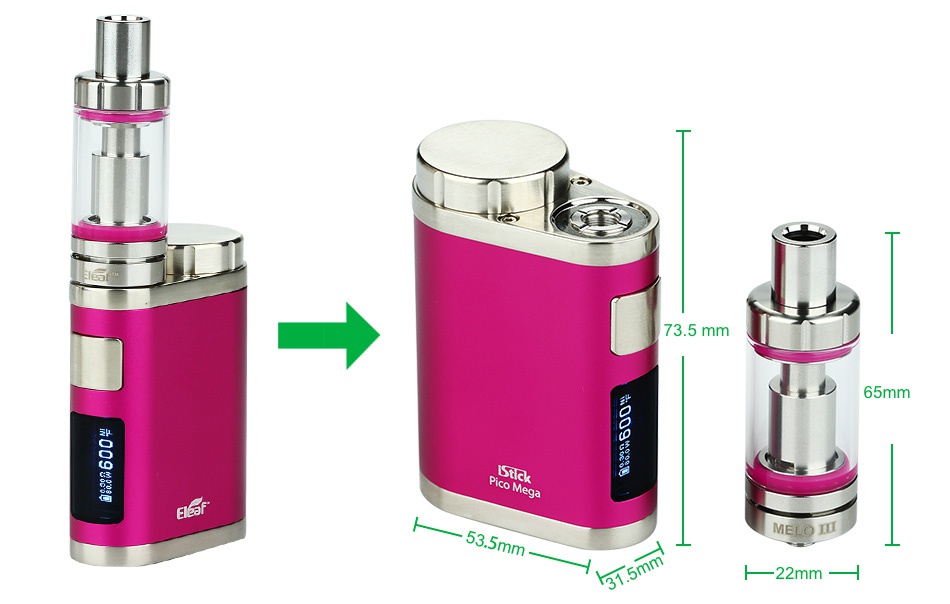

Size: 53.5mm x 31.5mm x 73.5mm

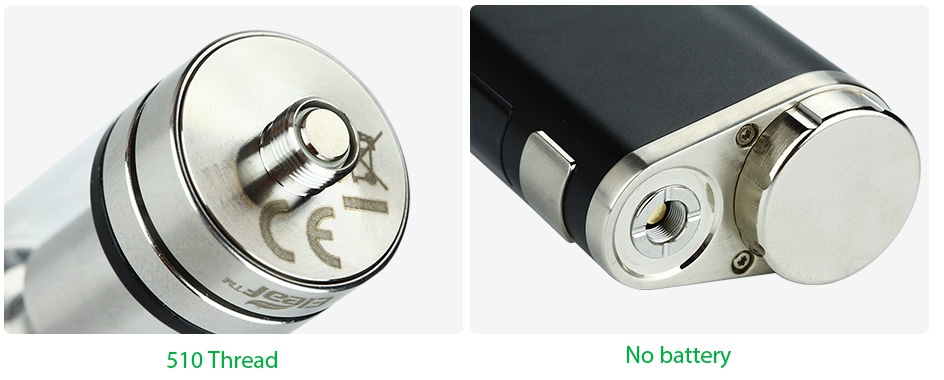

Thread type: 510 thread
Cell type: High-rate 18650 cell (Continuous discharge current should be above 25A);
High-rate 26650 cell (Continuous discharge current should be above 35A)
Output mode: Smart/VW/Bypass/TC(Ni,Ti,SS,TCR-M1,M2,M3) mode
Output wattage: 1-80W
Resistance range: 0.05-1.5ohm (TC modes); 0.1-3.5ohm (Smart/VW/Bypass mode)
Temperature range: 100-315℃(200-600F) (TC modes)

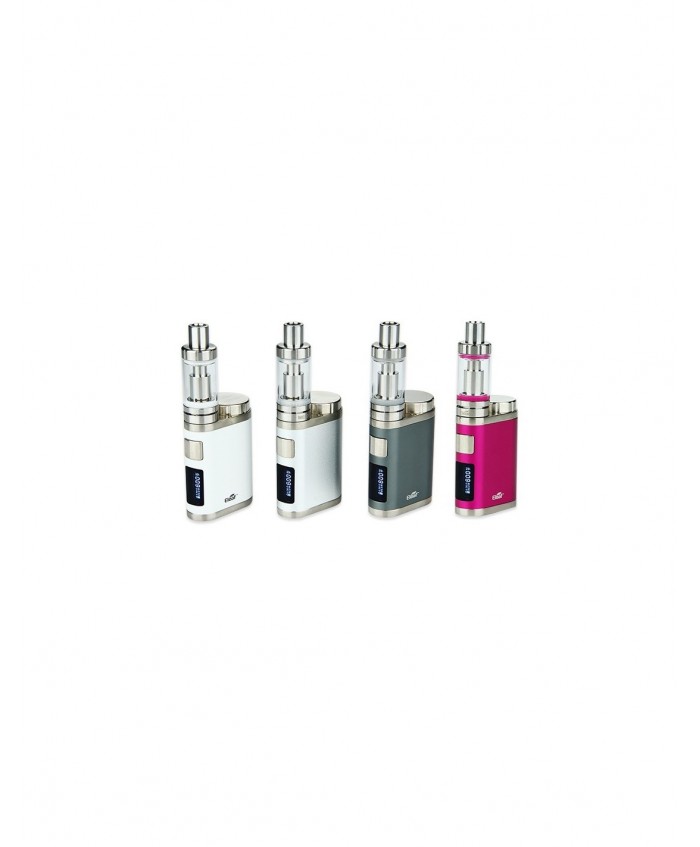

Color: Hot pink, black, grey, silver, white

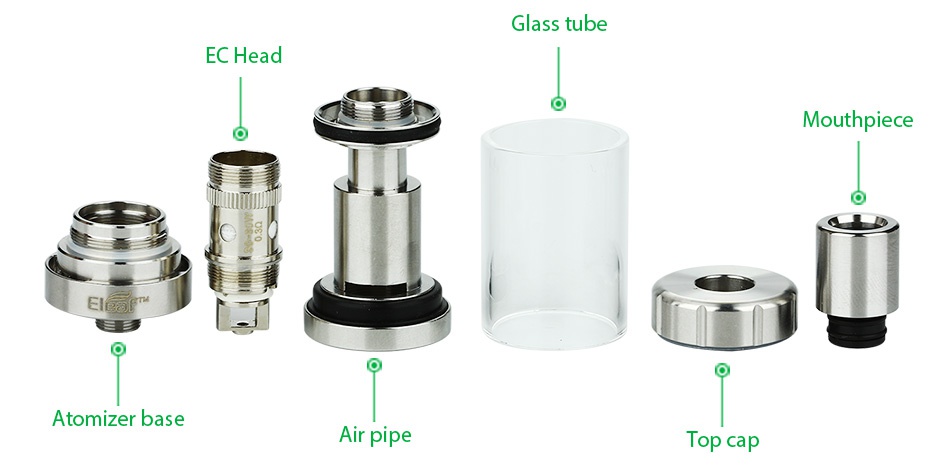

Melo 3 Atomizer
Diameter: 22mm
Length: 65mm
Capacity: 4ml
Thread Type: 510
Suitable voltage: 3V - 8V
Material: 304 stainless steel

Eleaf iStick Pico Mega 80W TC Full Kit contains

• 1 x iStick Pico mega
• 1 x Melo III Atomizer
• 1 x EC NC 0.25ohm Head
• 1 x EC 0.3ohm Head
• 1 x EC 0.5ohm Head
• 4 x Seal ring
• 1 x Battery Sleeve
• 1 x USB cable
• 2 x User manual

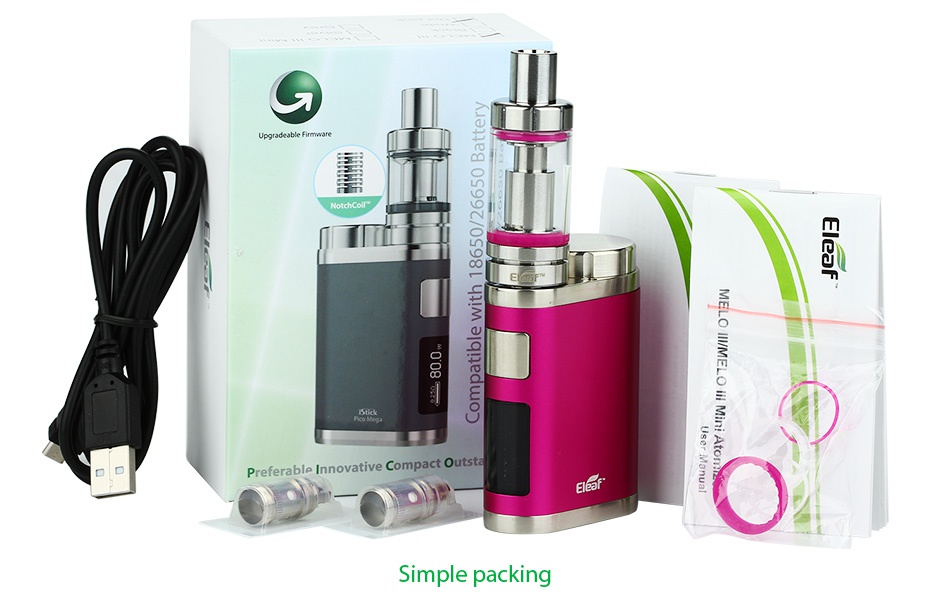

Simple packing. Customary Packing from the factory, the packing is subject to change without notice.

Features

80W Max Output
VW/Bypass/TC-Ni/TC-Ti/TCR Mode
Replaceable 18650 Cell/ 26650 cell
Elegant appearance in 5 colors
Top filling and hidden adjustable airflow
Unique bottom design
Upgrade-able firmware

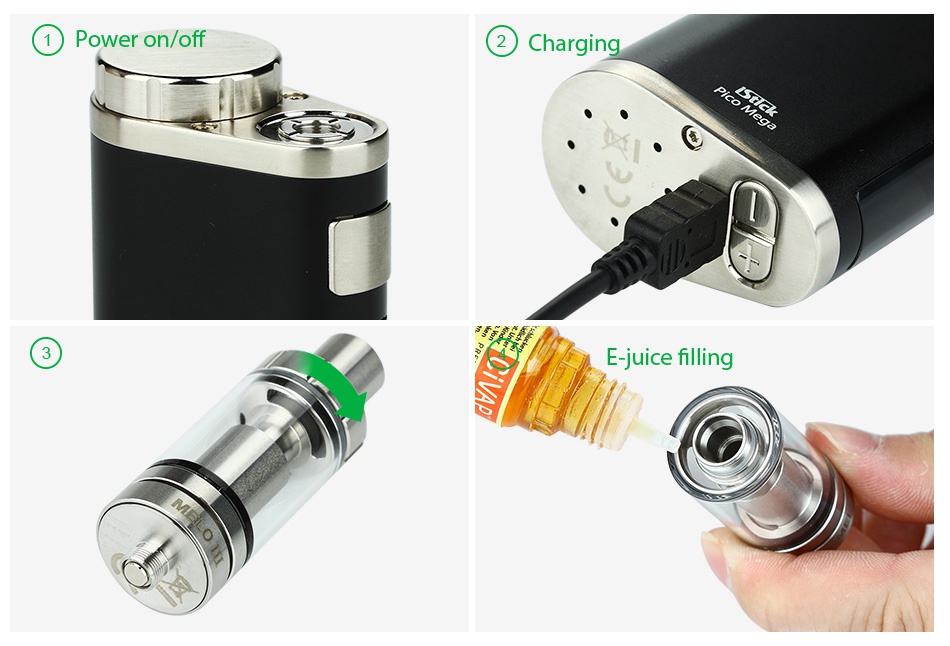

Operation Guide

How to add liquid
1. Unscrew the top cap off the atomizer;
2. Slowly refill e-liquid into the glass tube;
3. Screw back the cap onto the Melo III.
Note:
a) Please don't overfill or add e-juice into the air pipe.
b) Please first drip a few drops of e-liquid directly into the pure cotton wick in the atomizer head so as to make it fully soaked before vaping.

How to replace atomizer head
1. Screw the base off atomizer firstly.
2. Screw off the atomizer head from base and replace a new one.

How to adjust airflow
You can adjust the airflow by rotating the airflow control ring on the atomizer base, clockwise to increase and counterclockwise to decrease airflow.

Power on and off: Press fire button 5 times continuously to turn on/off the device.

Vaping: Long press the fire button and take a puff.

Stealth function: While the device is on, simultaneously hold the fire button and the down button. This will allow you to switch between the Stealth on and off function.

Lock/unlock: While the device is on, simultaneously keep pressing up and down buttons for 2 seconds. This will allow to switch between lock and unlock.

Switch the display Mode: While the device is powered off, keep pressing up and down buttons simultaneously for 2 seconds, the display will rotate 180 degrees.

Shift between VW/Bypass/TC-Ni/TC-Ti/TC-SS/TCR mode: While the device is on, press the fire button 3 times in quick succession, the first row will flash to indicate you entering the menu. Press the up or down button to switch between different modes. Then press the fire button one time to confirm the mode you chose.

How to charge: You can take out the lithium-battery from the device and then charge the cell itself. Moreover, it can also be charged in the iStick Pico via USB cable.

• You can select the vape juice here.
• It doesn't come with 18650 lithium-battery or 26650 battery.
• You can buy Eleaf EC coils 0.3ohm/0.5ohm, 0.15ohm Ni200, 0.5ohm Ti and ECR coil.
• With a 18650 battery, the max output power is 75W; Max ouput power can be 80W only when 26650 battery is high rate (continuous discharge current should be above 35A).

Guarantee

Please check Guarantee Policy.
Guarantee period: 3 months for the Pico Mod.

Click download to get the certificate: CE, RoHS.
