VOOPOO Black Drag 157W TC Kit with UFORCE T1

About VOOPOO Black Drag 157W TC Kit with UFORCE T1

The inauguration of VOOPOO was in 2014. The primary work of VOOPO is the production of electronic cigarette, and this work started after getting the ownership of the U.S. brand. The name of the brand was WOODYVAPES in 2017, and now the VOOP has the global sale, and it is a well-reputed brand. The motto and aim of VOOPOO are to serve millions of electronic cigarette users on this Earth. There is a continuous increase in the technology trends in the company, and that is the reason for the international fame of the VOOPO. Thus, it is the brand which is known for its technology and techniques. VOOPO is very conscious for the craftsmanship. The company also aims to get more advancements in the scientific trends and techniques. There is advancement like fast ignition so that the electronic cigarette is now more safe and secure.

With its beautiful design and excellent functionality, the VOOPOO DRAG is everything a modern vaper could need. This box mod features a firing speed that breaks all records, coming to life in only .025 seconds. The unit measures 90 millimeters by 54 millimeters by 24 millimeters in size and is made from hard-wearing zinc alloy material. The vape has an easy-to-remove door for you to change the two 18650 batteries inside with ease. The VOOPOO DRAG runs anywhere between 5 and 157 watts to give you control over the heat level with which you like to vape.

Specification

Parameters

VOOPOO Black Drag MOD

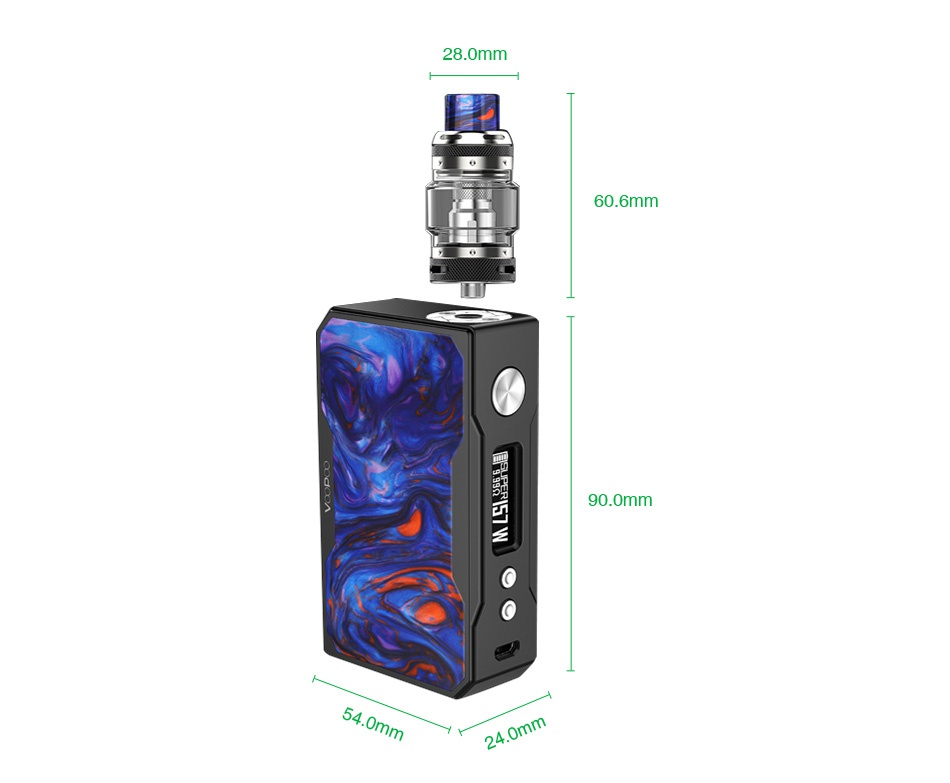

Size: 90 x 54 x 24mm
Battery: 2 x 18650 batteries (NOT included)
Working Voltage: 6.4-8.5V
Output Voltage Range:0-7.5V
Resistance range: 0.05-3.0ohm (VW); 0.05-1.5ohm (TC)
Output Power: 5-157W
Temperature Range:200-600F/100-315℃
Innovative Mode: Super Mode/Power Compensation Mode
TC Mode: SS316/Ni200/Ti/NC/TCR/CCR
Material: Zinc Alloy & Resin
Thread: 510 thread

UFORCE T1 Tank
Size: 28mm x 60.6mm
Capacity: 1.8ml(TPD Edition)/ 8ml(Standard Edition)
Coil head:0.4ohm Dual Coil (40-80W,Best 55-65W)
Thread: 510 thread

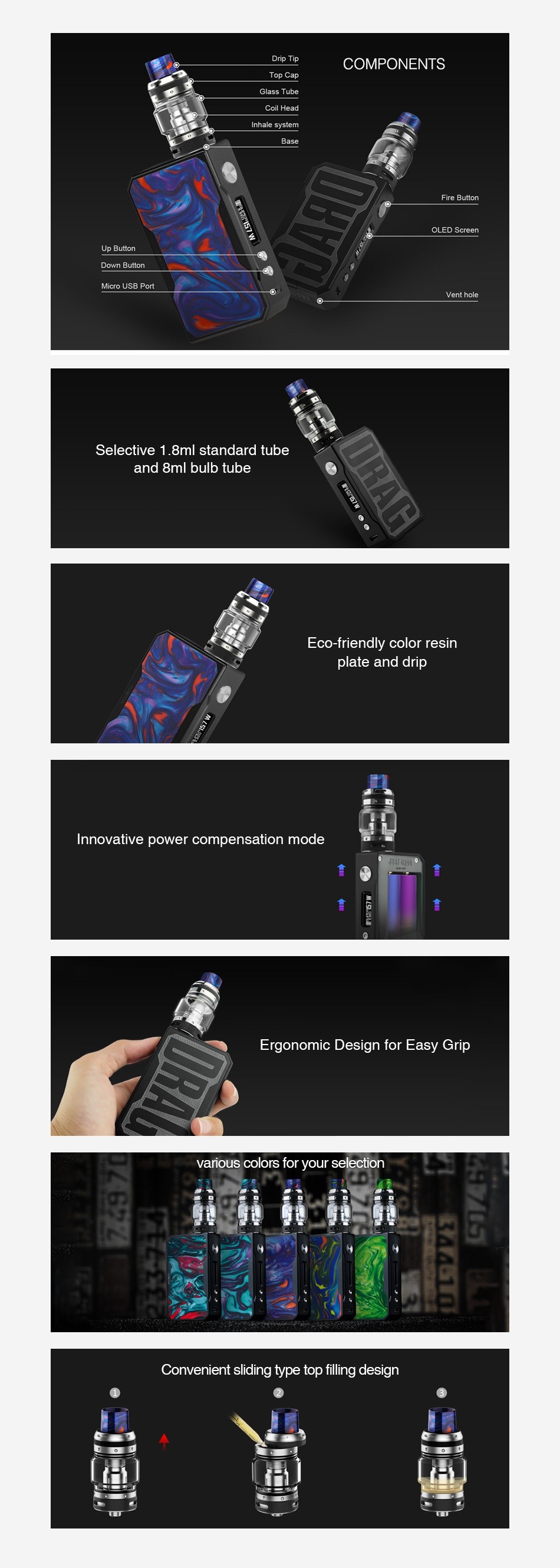

Feature

Selective 1.8ml standard tube and 8ml bulb tube
Eco-friendly color resin plate and drip
Convenient sliding type top filling design
Max 157W output power
Upgraded Gene.Fan chip
Pioneer super mode
Innovative power compensation mode
Upgraded firmware

Packing

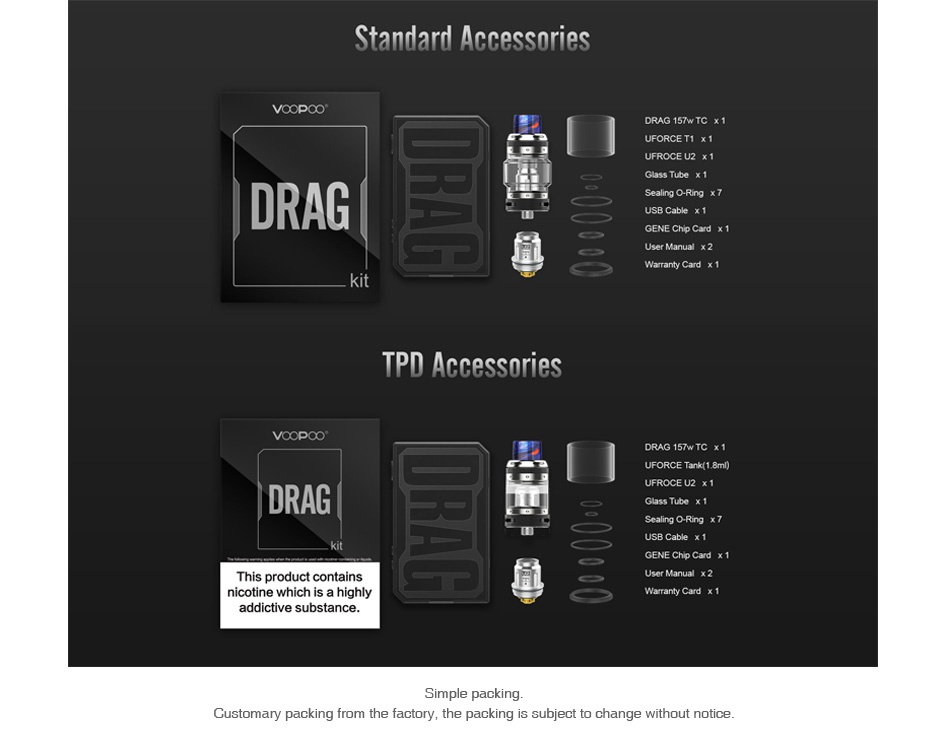

VOOPOO Black Drag 157W TC Kit with UFORCE T1 contains

Standard Edition

• 1x VOOPOO Black Drag MOD (without cell)
• 1x UFORCE T1
• 1x UFORCE U2
• 1x Spare Glass Tube
• 1x Sealing O-Ring
• 1x USB Cable
• 1x User Manual
• 1x Warranty Card
• 1x GENE Chip Card

TPD Edition

• VOOPOO Black Drag MOD (without cell)
• 1x UFORCE Tank(1.8ml)
• 1x UFORCE U2
• 1x Spare Glass Tube
• 1x Sealing O-Ring
• 1x USB Cable
• 1x User Manual
• 1x Warranty Card
• 1x GENE Chip Card

Simple packing. Customary Packing from the factory, the packing is subject to change without notice.

Order Tips

• 510 thread
• It doesn't come with 18650 lithium-battery.
• You can select UFORCE Tank in VapeNico.
• You also can buy replacement UFORCE Coil / VOOPOO Replacement Glass Tube / VOOPOO UFORCE Connector in VapeNico.(The 8ml bulb glass tube need an extra connector to fit with UFORCE T1 tank.)
• The resin style drag has its own unique psychedelic pattern. We could not guarantee the product has the same pattern as that in pictures. We can only ship orders randomly. Hope you can understand.

Operation Guide

Power on/off: Press the fire button 5 times in quick succession to turn the device on and off.

Mode Switch: Press the fire button 3 times quickly, the four interfaces can be switched orderly under normal startup condition. Constant power and temperature control SS/Ni/Ti.

Temperature Adjustment: When the temperature was set to 100℃, keep on pressing the down button, temperature will turn to 600F. When the temperature was set to 200F, keep on pressing the down button, temperature will turn to 315℃. Quickly press the fire button 4 times can get into wattage adjust interface. Then you will see the letter "W" is flashing. The adjustable wattage is 5W to 80W.

Function Menu: Press uo and down buttons simultaneously for 1.5 seconds, enter the function menu interface. Press up button or down button simultaneously to choose th function. Press the fire button to make confirmation and go to next step.

Customization Mode: Press up and down buttons simultaneously for 1.5 seconds, the device will go to the function menu interface. Press up and down button to choose the Customization Mode and press fire button to go into Customization Mode interface. Under Customization Mode, press fire button 3 times continuously, 4 kinds of Customization Mode can be switched sequentially: Stable Power Mode, Temperature Control Mode:TC-SS316/TC-Ni200/TC-Ti.

Sleep Mode: If there is no operation for 30 seconds, screen will turn off. No operation for 30 minutes after the screen off, the device will enter sleep mode.

Guarantee

3 months for Black Drag 157W MOD. Please check Guarantee Policy.
