UD Sifu B-Tab Box MOD/DIY Tool

$111.11
  • Ex Tax: $111.11
  • Product Code: M00003142
  • Availability: In Stock

About UD Sifu B-Tab Box MOD/DIY ToolUD vapes is a company that believes in streamlining their designs and creating lines that vape enthusiasts all acr..

About UD Sifu B-Tab Box MOD/DIY Tool

UD vapes is a company that believes in streamlining their designs and creating lines that vape enthusiasts all across the board can enjoy. Their motto is "unification of design," and they focus not only on bringing high quality designs to the market but also creating high quality ones as well. The company specializes in RBA tanks and are best known for their Goblin Mini and Zephyrus tanks. Because of their reliability and quality, they have long been accepted by DIY vapers far and wide.

Take back control over the way you vape when you bring home this Sifu B-Tab. The Sifu B-Tab mod is a multifunctional box that can be used as an ohm meter, a coil burning deck and a regulated TC mod, all depending on how you prefer. The burning and building decks can be installed using an atomizer for easier use. It is able to support coils between .05 and 3 ohms and has a maximum output wattage of 70 watts.

UD Sifu B-Tab Box MOD & DIY Tool


Product Instructions


Parameters

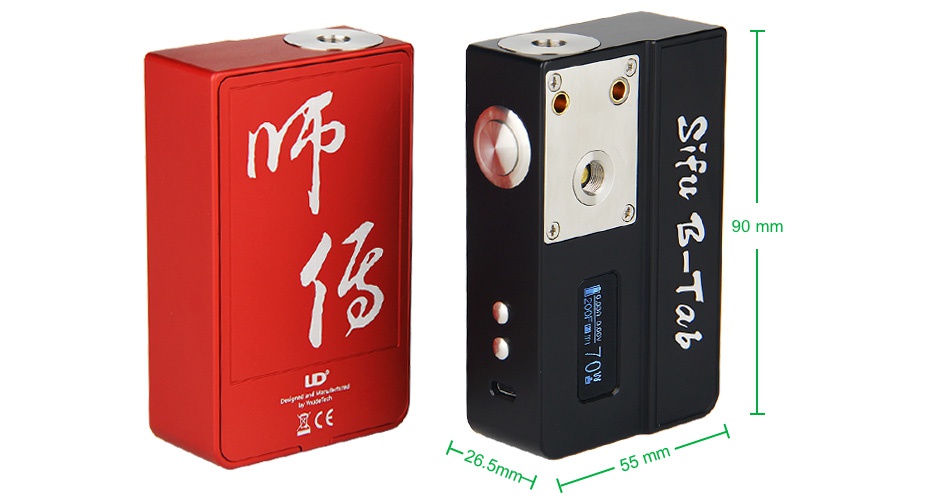

Size: 90 x 55 x 26.5mm
Battery: 1 x 18650 battery (not included)
Output Power: 5 - 70W
Output voltage: 1 - 8.5V
TEMP range: 200F - 600F/ 95℃ - 315℃
Resistance range: Kanthal coil 0.15ohm - 3ohm (power mode); Ni200/Ti coil 0.1 - 1ohm, SS316L coil 0.15 - 3ohm (TC mode)
Material: SS, Aviation Aluminum
Output mode: Power normal/Power curve/TC-Ni200/SS316L/Ti/TCR
Thread: Spring type 510 thread

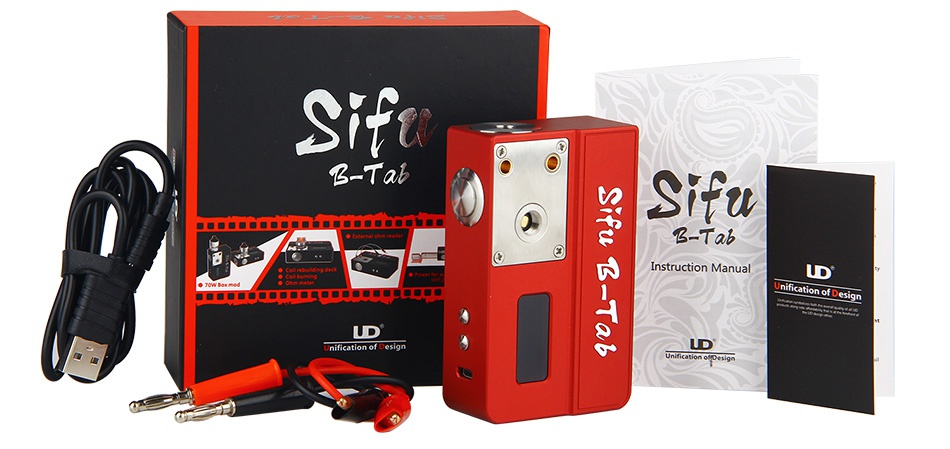

UD Sifu B-Tab Box MOD/DIY Tool contains

  • 1 x Sifu B-TAB
  • 1 x USB cable
  • 2 x external reistance testing wires with alligator clips
  • 1 x User manual
  • 1 x Warranty card

Simple packing. Customary packing from the factory, the packing is subject to change without notice.

UD Sifu B-Tab Box MOD/DIY Tool  Tab  Tab Instructions Manual UD

Features

1. Portable multi-functional Box Tab:

1)70W box mod

2)buildingdeck

3)burning coil,ohmreader

4) power for automatic coil jig

2.Building deck/Burning deck can be installed withatomizer, consumer can adjust its system as request

3. Support 0.05-3ohm coil for burning.

4. Resistance test accuracy can be controlled to 0.01ohm

5. With condensationcollection ring for collecting condensed fluid aside

6. Spring type 510 thread connected with battery positive electrode

7. Chinese/English language options

8. 5 groupsof memory parameters, customer can pre-set the output parameter for differentatomizer.

9. Add powercurve output mode to ensure good flavor

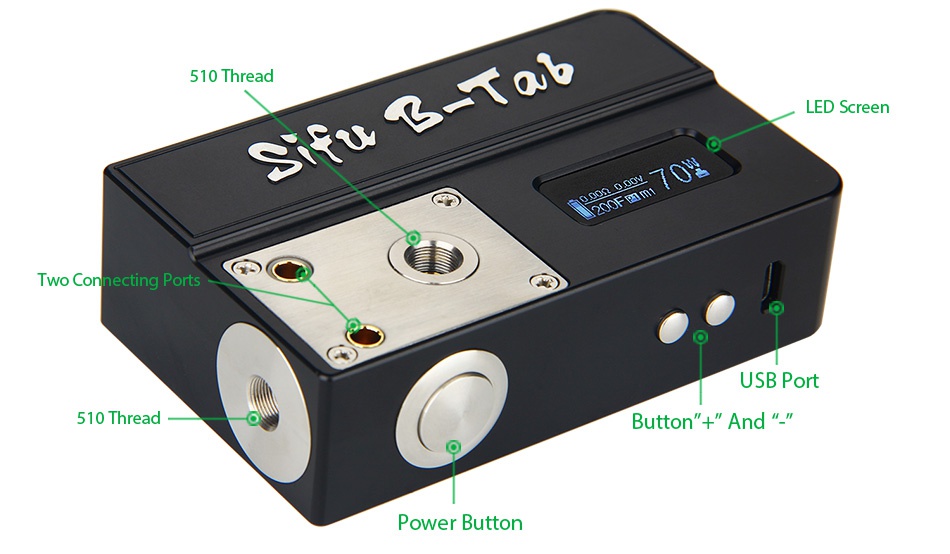

UD Sifu B-Tab Box MOD/DIY Tool Su a 510 Thread Two Connecting Port USB Port 510 Thread Button   And Power button


Operation Guide

1. Turn on/ off: Press the power button 5 times continuously within 3 seconds to turn on/ off.
2. Standby mode: Display will darken in 5 seconds without working, display off in 15 minutes without working , then press any button can bright the screen.
3. Overtime protection: Working continuously more than 10 seconds, screen show "over time" and stops output. It will restore when you fire it up again.
4. Low voltage Alarm: Screen will show "Low battery" when voltage is lower than 3.3V, please recharge or replace battery in time.
5. Switch of two threads: Circuit board will switch automatically and screen will distinguish when singly use vaping port or coil burning port. When both ports are installed by the work piece, press both power fire button "+" "-" button in 3 seconds.
6. Resistance test: Testing resistance function is prior when alligator clips are installed to the "+" "-" ports.
7. Resistance testing return to "0": Connect the "+" "-" alligator clips, then resistance will return to 0 when press the fire button 3 times in 2 seconds.
8. Function transformation: Under standby mode, press power button 3 times continuously within 3 seconds to enter menu mode. "+" "-" works as switch button, enter to confirm it by pressing power button.
9. Power adjustment: Press "+" "-" can adjust power under standby mode of VW&TC.
10. Supply sensitivity adjustment
11. Screen display adjustment
12. Initial resistance checking
13. Button lock and unlock
14. Add temperature compensation system
15. Add shortcut key setting
16. Add TCR mode
17. Add power curve output mode
18. Online upgrading
19. Add SN number
20. Overheating protection
21. Battery reverse
22. Short circuit protection
23. Battery protection
24. Anti-dry burning protection

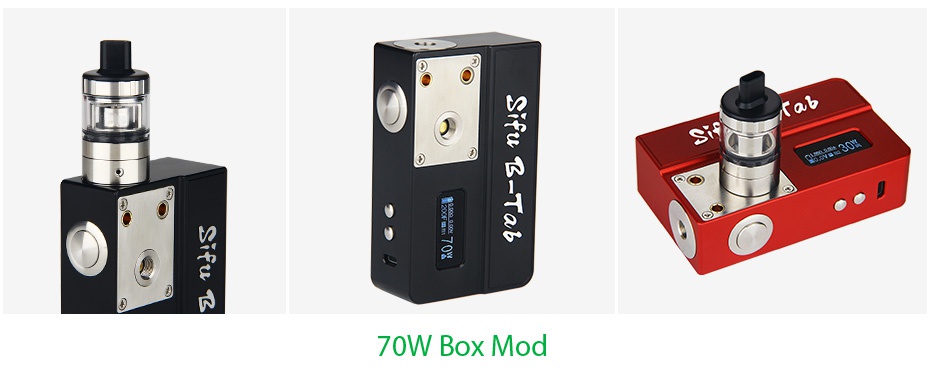

UD Sifu B-Tab Box MOD/DIY Tool  l 70W Box Mod

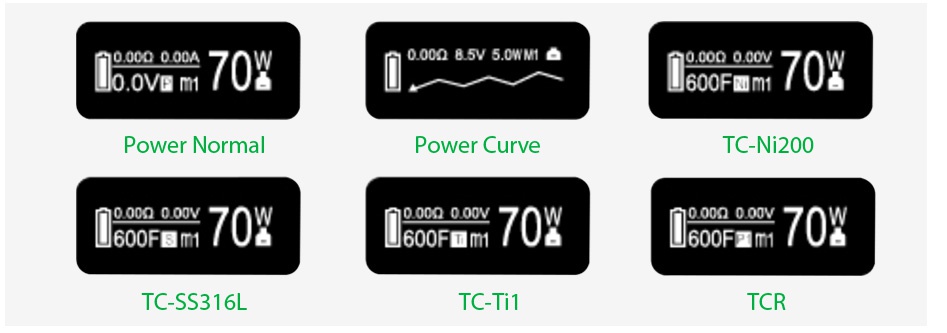

UD Sifu B-Tab Box MOD/DIY Tool n0m78 000855 0wM 0 0oo00v 600F m 708 Power normal Power curve TC NIi200 n0m7080m7001708 TC SS316L TC Til TCR

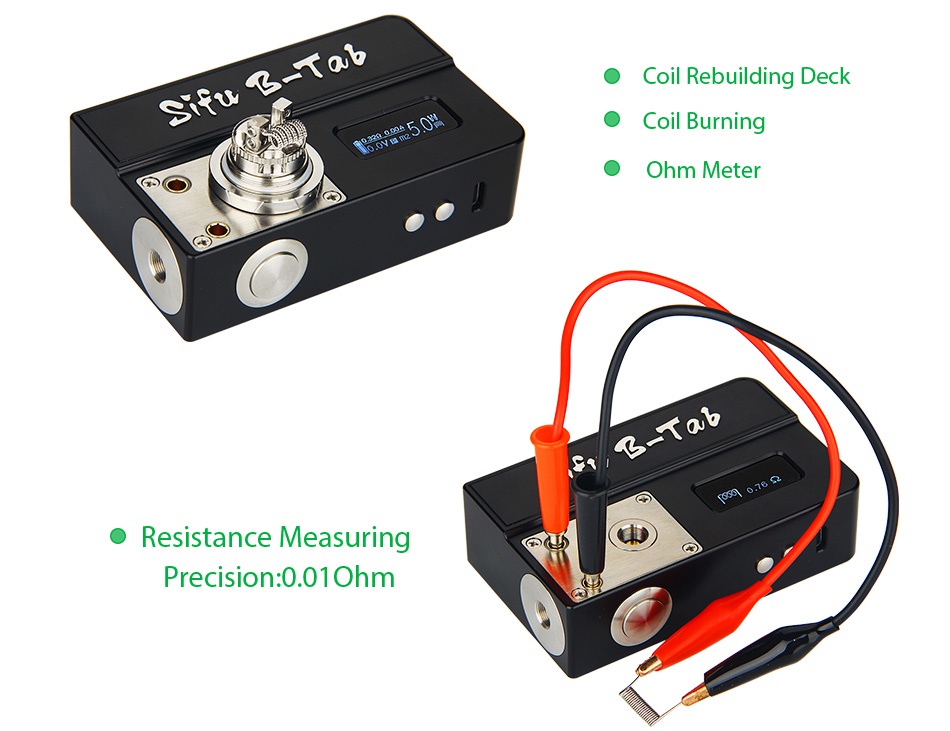

UD Sifu B-Tab Box MOD/DIY Tool  0 o Coil Rebuilding deck   Coil Burning O Ohm Meter o Resistance Measuring Precision  o01 Ohm

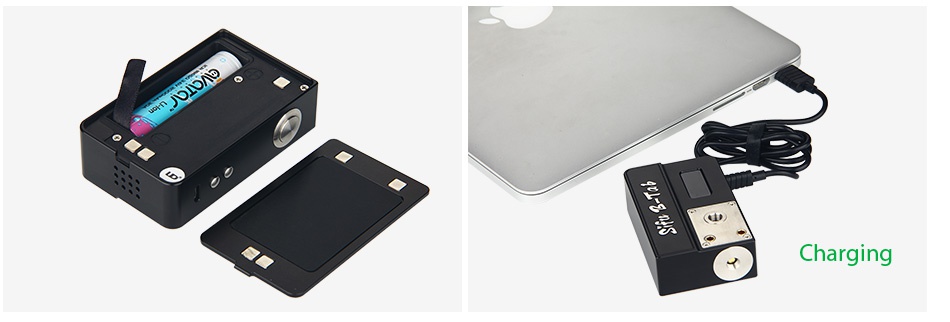

UD Sifu B-Tab Box MOD/DIY Tool Charging



Guarantee

3 months for UD Sifu B-Tab. Please check Guarantee Policy.
