SMOK QUANTUM 80W TC MOD

$76.40

rating

Ex Tax: $76.40
Product Code: M00003443
Availability: In Stock

About SMOK QUANTUM 80W TC MODSMOK is a vaping company, which was established in 2010 and is based in Shenzen that has taken the vaping world by storm...

Available Options

OPTION

Qty

Description
Reviews (0)

About SMOK QUANTUM 80W TC MOD

SMOK is a vaping company, which was established in 2010 and is based in Shenzen that has taken the vaping world by storm. This company is known for their innovation, resulting in the first atomizer having dual coils. The company is highly regarded as being the most advanced in the industry, and is known for their R&D team, which is meticulous in coming up with new advances.

The Quantum by SMOK is a box mod with a compact appearance. It produces a maximum output of 80 watts. Along with that, there are temperature control settings. On board support has been provided with the help of Nickel, Titanium and Stainless Steel heating coils. When this is combined with the Brit Mini Flavor tank, it produces an amazing vaping experience. You can also opt for OTA firmware upgrading as there is support for it.

80W SMOK QUANTUM TC MOD W/O Battery

Product Instructions

Parameters

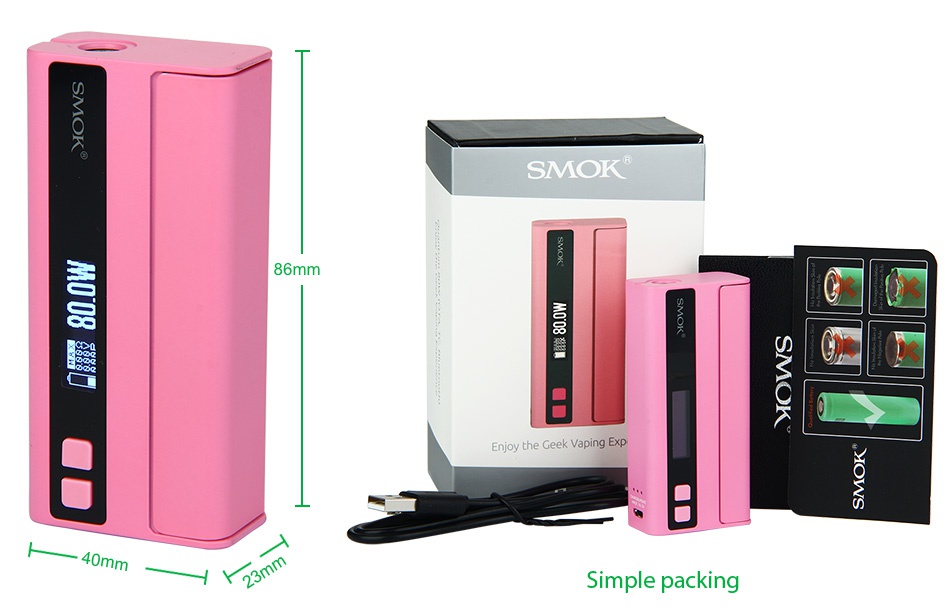

Size: 86 x 40 x 23.5 mm
Voltage Range: 0.8V - 9V
Output Power: 1W - 80W
Input Current: Minimum 1A, Typical 10A, Maximum 30A
Standby Current: ï¼œ500uA
Temp Range: 200F -600F/ 100°C -315°C
Resistance Range: 0.06ohm - 2.0ohm (TC mode); 0.1ohm - 3ohm (VW mode)
Battery: single 18650 battery (not included)
Material: Zinc Alloy

Quantum TC MOD comes with

1 x Quantum 80W TC MOD
1 x UBS cable
1 x User Manual

Simple packing. Customary packing from the factory, the packing is subject to change without notice.

Features

Max 80W power
TC/VW Modes

OTA (over-the air) upgrading

Innovative design of power button
Colorful finishing

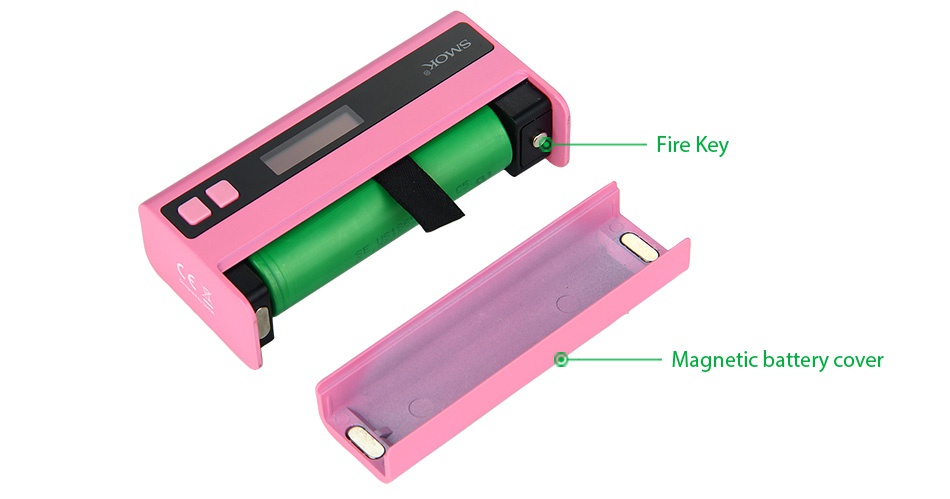

Magnetic battery cover

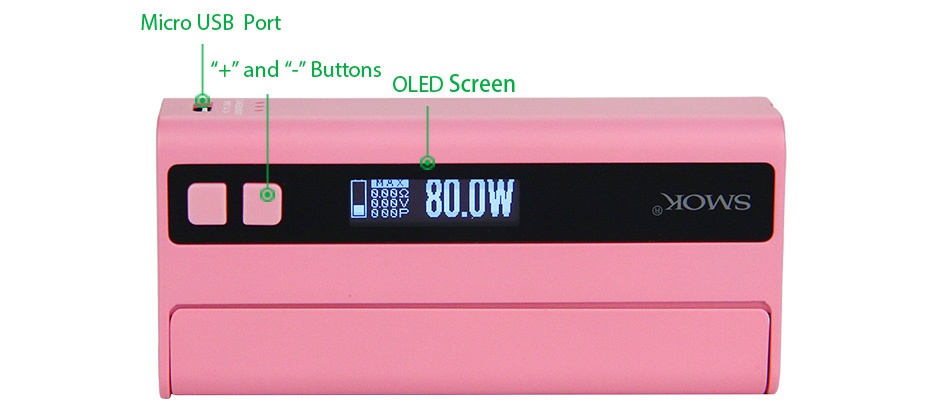

Easy to read OLED display
Ergonomic Design
Multiple Protections:
*Intelligent atomizer recognition
*Puff monitoring system
*12 seconds cut-off
*Short circuit protection
*Over-heat protection
*Low battery Warning

SMOK QUANTUM 80W TC MOD

Operation Guide

How to use

Power on/off: Click the power button 5 times quickly in 2 seconds to power on. Repeat it to lock the device and hold the power button for 5s to power off.

Menu option: Fast press fire button 3 times under power on status will enter to menu interface; you can press up and down buttons to select the menu. Choose one menu and wait for 2.5 seconds or press and hold down the power button to enter sub-menu.

Lock/ Unlock: Press power button 5 times will lock the button; repeat it to unlock it.

When the mod locked: press up and down button simultaneously to show daily vaping time and puff number. Press the up button to show current date, down button to show current time.

When the mod unlocked:press up and down button simultaneously to switch between "WATT MODE" and "TEMP MODE". Press the Power button and up button simultaneously to switch between "MIN""MAX""HARD" "NORM" and "SOFT" draw effects. Press the up button and down button simultaneously to switch between "LOCK" and "UNLOCK".
