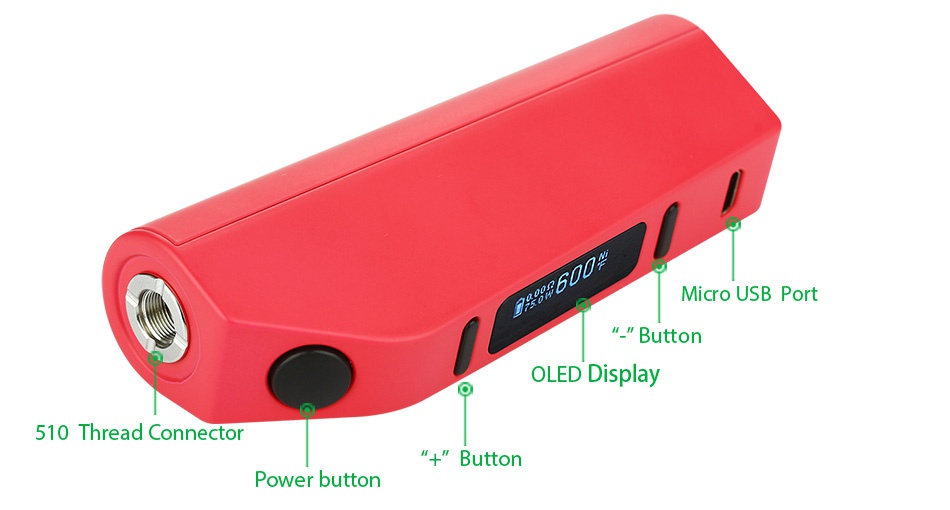

Eleaf ASTER 75W TC MOD

$40.90
  • Ex Tax: $40.90
  • Product Code: M00003131
  • Availability: In Stock

About Eleaf ASTER 75W TC MODEleaf is one of the most recent e-ciggereate company offering quality products along with state of the art customer suppor..

Available Options

About Eleaf ASTER 75W TC MOD

Eleaf is one of the most recent e-ciggereate company offering quality products along with state of the art customer support. The company has regular customers who prefer its products. Some of the products that we offer include eleaf mini iJust battery, rebuildable atomizer, elaf iJust mod, iSmoka iGo Mod and several other products. You can visit our online shop and buy ismoka electronic cigerrate to get the best e-smoking experience.

The Aster MOD and Aster RT 22 kit are two of constituents of the ELeaf Aster Series. You can use the Aster TC MOD with a power output of 75 watts and the Aster TC MOD with a output of 100 watts with multiple modes (VW, Bypass, TCR etc) and users can make a choice in accordance with their vaping needs. The firmware is upgradeable and there is a Recessed Tank (RT) feature along with that. Tanks with a maximum diameter of 22mm can be held. Considering this size, a maximum of 22 pairs can be placed with the ASTER MOD. The Eleaf ASTER Total Kit comprises of a tank in one unit and a battery. It fits comfortably in the hand due to its compact structure.

75W Eleaf ASTER TC MOD W/O Battery


Product introduction

Parameters

Size: 35.5mm x 23.0mm x 91.0mm

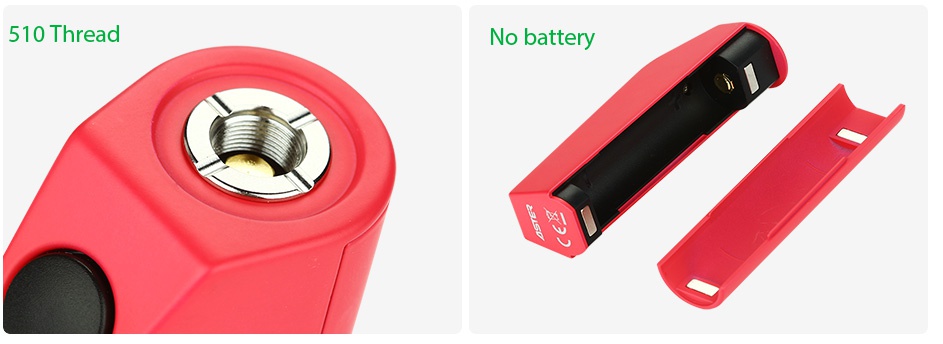

Thread type: 510 thread

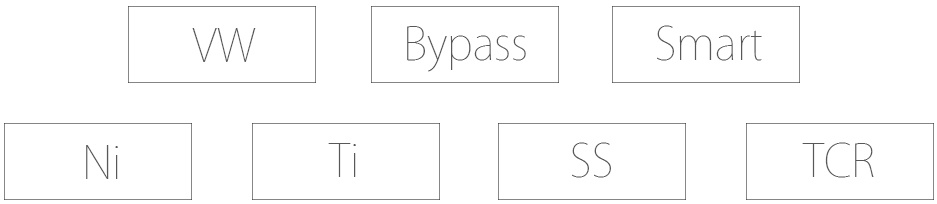

Output mode: VW/Bypass/Smart/TC(Ni,Ti,SS,TCR-M1,M2,M3) mode
Output wattage: 1-75W
Resistance range: 0.05-1.5ohm (TC modes); 0.1-3.5ohm (VW/Bypass/Smart mode)
Temperature range: 100ï¼315℃/200ï¼600F (TC modes)

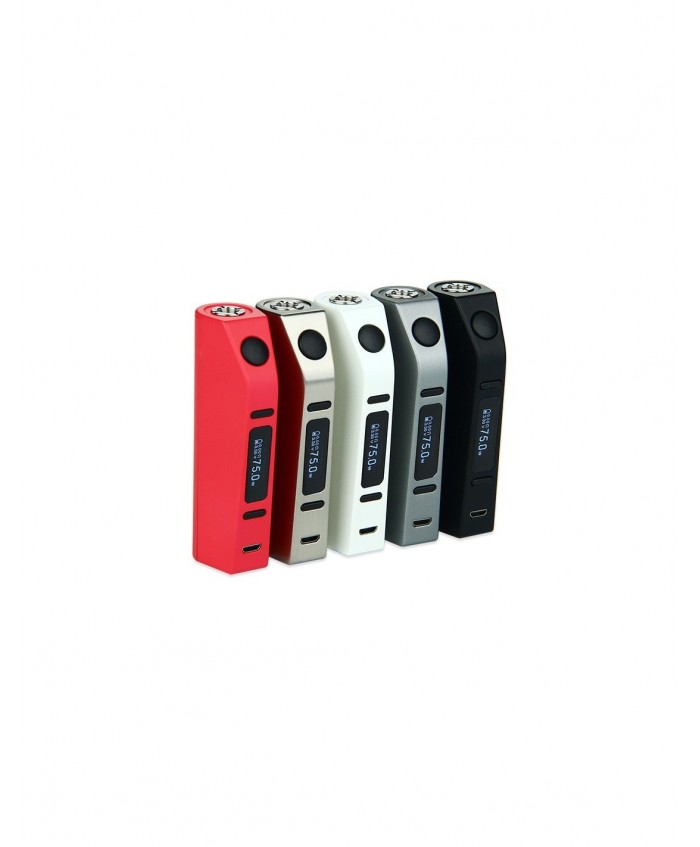

Color: deep pink, grey, black, white, brushed Silver

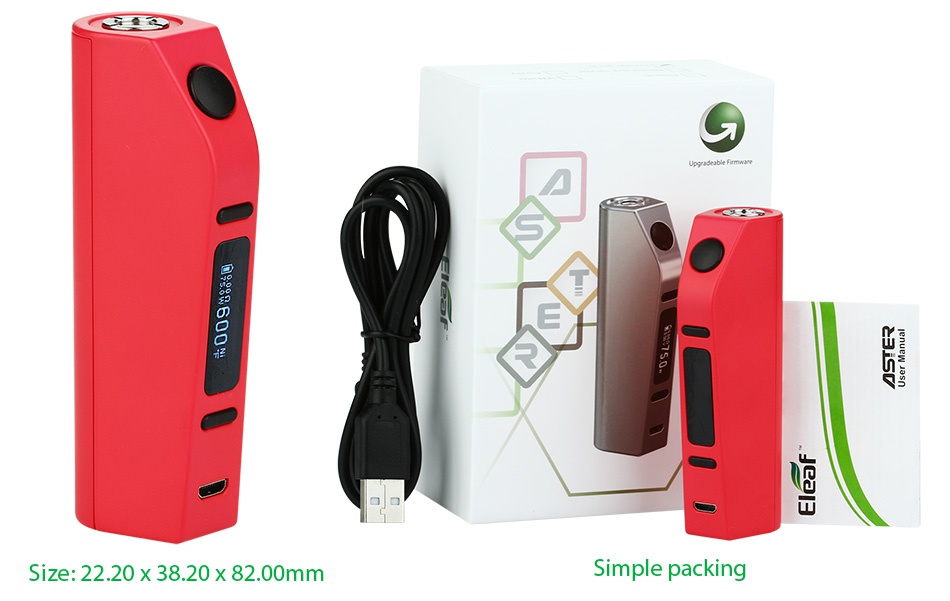

Eleaf ASTER 75W TC MOD contains

  • 1 x ASTER MOD
  • 1 x USB cable
  • 1 x User manual


Simple packing. Customary Packing from the factory, the packing is subject to change without notice.

Features

Unique shape design for comfortable grip

Elegant appearance in 5 colors

75W Max Output

VW/Bypass/Smart/TC-Ni/TC-Ti/TCR Mode

Replaceable 18650 Cell

Dual Circuit Protection

Reverse Polarity Protection

Upgrade-able firmware

Eleaf ASTER 75W TC MOD

Operation Guide

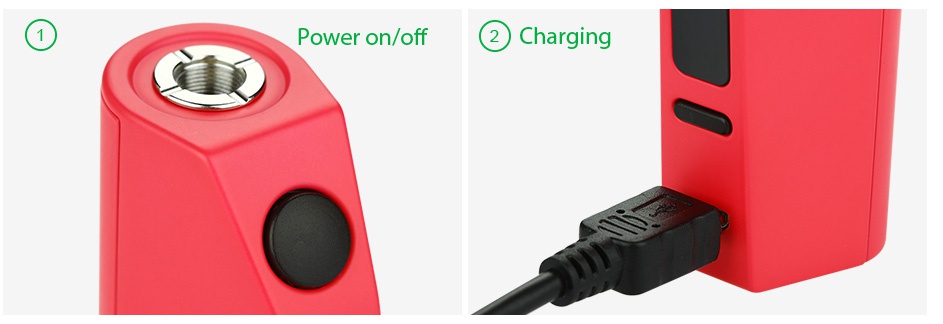

Turn on/off the battery :(5-Click protection)
Open the battery cover, put in the cell, put back the battery cover, and press the fire button 5 times within quick succession to turn on/off battery.

Vaping: Hold the fire button and take a puff.

Stealth on/off:

simultaneously hold the fire button and down button to switch between Stealth on and Stealth off function.

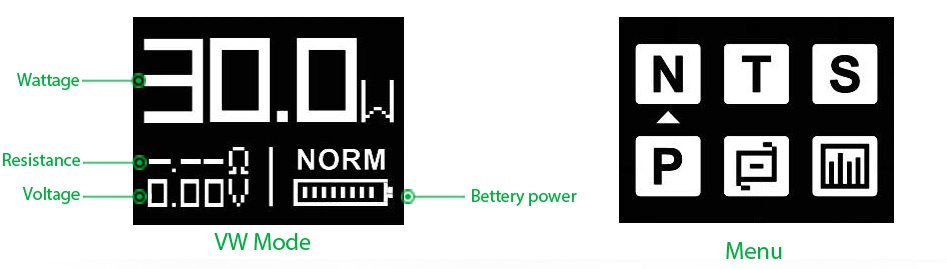

Stealth on Mode, you can vape with the OLED screen off. To see current setting, you can press the fire button one time.

Adjustment buttons lock/unlock function:

Keep pressing up and down button simultaneously for 2 seconds when the device is powered on. This will switch between Adjustment Lock (up and down button will be locked and the screen will display "Lock") and Adjustment Unlock function(up and down button will be unlocked and the screen will display "Unlock"). This operation can protect buttons from unintentional presses and prolong their lifespan.

Switch display mode

Keep pressing up and down button will be locked and the screen will display "Lock" simultaneously for 2 seconds when the device is powered off, the screen display will rotate 180 degrees.

Switch vaping mode

When the device is powered on, press the fire button 3 times within quick succession, the device will display current vaping mode. Press up and down button to switch among VW, Bypass, Smart, TC(Ni,Ti,SS,TCR-M1,M2,M3) modes and then press the fire button 1 time or stay in the interface for about 10 seconds to confirm the vaping mode.

Eleaf ASTER 75W TC MOD

Eleaf ASTER 75W TC MOD

Eleaf ASTER 75W TC MOD

Charging

Plug the micro USB into the Micro USB port on the battery end, another end connect to AC adapter or USB port of power supply.

Eleaf ASTER 75W TC MOD

Joyetech eGo AIO D22 Quick Start Kit 1500mAh Black SS Blue

  • It doesn't come with 18650 lithium-battery.

Eleaf ASTER 75W TC MOD

Guarantee

Guarantee period: 3 months for Eleaf ASTER TC MOD. Please check Guarantee Policy.

Click download to get the certificate: CE, RoHS.
